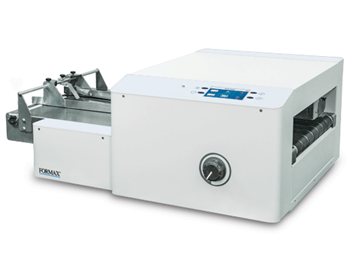

The AP4 High-Volume Monochrome Digital Address Printer is designed for in-line applications, and features an industry-leading 4-inch print area and a 2+4+2 head configuration. This workhorse can print up to 26,000 #10 envelopes per hour, or up to 34,000 postcards per hour, with variable print resolutions up to 600 DPI, and the ability to print on a variety of coated and uncoated stocks.

The infeed transport deck has positionable transport belts and guides that run under the belts for spot-on print registration at high speeds. Three independent print head banks offer a total 4-inch print height, and can overlap if needed, with a maximum print range of 12.75”. It accommodates pieces up to 1/2” thick.

• Print Technology	Thermal Inkjet, 8 high capacity cartridges
  Addressing Speed	Up to 26,000 #10 envelopes/hour Up to 34,000 postcards/hour
  Print Quality	Up to 600 x 600 DPI
  Imaging Area	Up to 4" x 50"
  Material Size	3" x 5" to 15" x 50"
  Material Thickness	Up to 12.7mm (1/2")
  Duty Cycle	Up to 1,250,000 per month
  Memory	Up to 16GB
  Counters	Batch, job, lifetime
  Print Head Layout	2-pen + 4-pen + 2-pen
  Fonts	All TrueType fonts available on PC
  Ink Monitor	Intelligent cartridge tracking
  Print Orientation	Left to Right
  Software	Drivers for Windows 7 and higher
  PC Interface	USB 3.0, Ethernet
  Diagnostics	Built into firmware
  Dimensions	34" x 25" x 12"
  Weight	96 lbs
  Power	115VAC, 50/60 Hz
