The 6210 Series Inserters combine advanced folding & inserting technology with user-friendly features and flexibility. Five models are available with a variety of input configurations to meet the needs of any size office or small mailroom.
Standard features include a 7” full-color touchscreen control panel with graphical interface, high-capacity vertical stacker which holds up to 500 finished envelopes, automatic paper and envelope presence sensors with indicators on the control panel, and a top-loading envelope hopper. The 6210 Series also includes an eco-friendly sleep mode which saves energy by automatically putting the inserter into standby mode after 1 hour of being idle.
| Speed | Up to 2,000 / 2,500* pieces/hr | | Duty Cycle | Up to 15,000 / 20,000* pieces/month | | Standard Feeders | Up to 325 sheets | | Short Feed Tray | Up to 50 BRE or 325 inserts | | Production Feeder | Up to 325 BRE or 1,200 inserts | | Envelope Hopper | Up to 150 envelopes | | High-Capacity Vertical Stacker | Up to 500 filled envelopes | | Catch Tray | Up to 100 envelopes | | Front/Rear Side Exit | Up to 225 envelopes | | Sheet Size | 3.5" x 5" to 14" x 9" | | Programmable Jobs | 50 | | Max Insert Thickness | 1mm | | Max Set Thickness | 2.5mm | | Envelope Size | #10 & 6" x 9.5", 3.35"x 6.3" to 6.35" x 9.7" | | Dimensions | 49" x 36" x 16.5" | | Power | 120V AC, 60 Hz |
*With Productivity Package
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features
- Five Configurations Available:

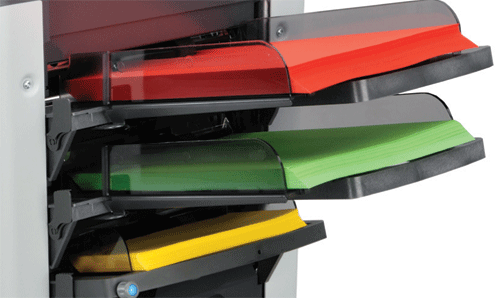

- Basic 1: One Sheet Feeder
- Advanced 1: One Sheet Feeder and One BRE Feeder
- Basic 2: Two Sheet Feeders
- Advanced 2: Two Sheet Feeders and One BRE Feeder
- Special 2: Two Sheet Feeders and One Special Insert/BRE Feeder
- 7" Color Touchscreen
- 50 programmable jobs
- High-Capacity vertical stacker can hold 500 finished envelopes
- AutoSet™ automatically senses and sets paper length, fold type, envelope size, fold length
- Graphic indicators on touchscreen to assist operators
- Envelope and paper presence sensors
- Fold/insert up to 5 pages in half-fold
- Feed up to 3 sheets from one feeder
- Clamshell design for easy access to paper path
- Accumulate before folding feature: documents are folded and inserted together
- Double document detection
- Multiple insert capability: fold and/or insert sheets, BREs, and cards in almost in combination
- Fold Types: C, V, Z, Double Parallel, No-Fold
- Fold only without inserting feature
- Daily mail mode for inserting stapled sets
- Seal and non seal mode
- Cascade mode: connects multiple feeders with same document. Moves to second feeder when first runs out
- Energy saving mode after 1 hour of inactivity
- Additional Options (call for pricing)
- Short Feed Trays: For feeding up to 50 BREs or 325 inserts

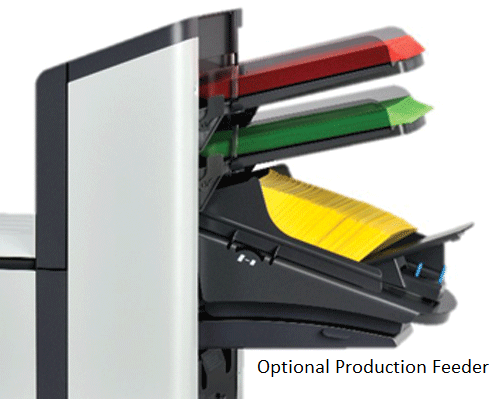

- Production Feeder: Holds up to 325 BREs or 1,200 inserts (Advanced 2 & Special 2 only)
- CIS Scanner: Spans the width of the feeders and reads OMR, 1D and 2D BCR, OCR printed horizontally and vertically anywhere on the page
- Single or Multi-Code Reading Licenses: Able to read Single-Track OMR, Dual-Track OMR, 1D Barcode, 2D Data Matrix
- Productivity Package: Increased speed, folding capacity, multi-sheet feeding capacity and monthly throughput
- Front or Rear Side Exit Tray: Holds up to 225 envelopes
- Catch Tray: Holds up to 100 envelopes
|
|
|
|
|
|
|
