Formax Cut-True 29H 20.5" Hydraulic Programmable Cutter
Formax Cut-True 29H 20.5" Hydraulic Programmable Cutter



Alternative Views:


List Price: $19,500.00
Our Price: $17,550.00
Savings: $1,950.00

Price with Selected Options: $17,550.00


Product Code: E-CUTT5475

Optional Side Tables



Qty:
Description Technical Specs

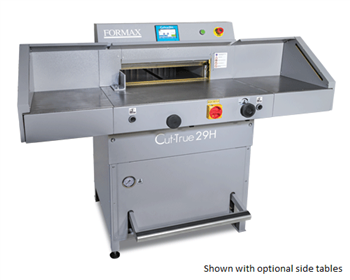

The Formax Cut-True 29H Hydraulic Guillotine Paper Cutter offers precision cutting for paper stacks up to 20.5” wide. User-friendly, intuitive features include a touchscreen control panel, automatically-adjusting back gauge and the capacity to program up to 100 jobs/100 cuts. An infrared light beam safety curtain provides safety and convenience as it shuts down operation if the light plane is interrupted.

Operation is simple: utilize the touchscreen to program and select job settings, then load a stack of paper, up to 3.15” high. Set the back gauge using the touchscreen, then use the foot pedal pre-clamp to check the paper position. The bright LED Cutting Line allows operators to see exactly where the blade will cut and make fine adjustments. Electronically-controlled two-hand operation engages the hardened steel blade for crisp, accurate cuts, every time.

Cutting accuracy is 0.1mm on paper stacks up to 80mm. The Cut-True 29H also features a special anti-friction surface with optional wide side tables, making it easier for operators to maneuver large paper stock. The hydraulic clamp pressure is easy to adjust using the hydraulic pressure gauge knob, providing the best clamp possible for different paper weights and stack heights. A false clamp is included to minimize the risk of marking sensitive paper stock or perfect bound books. In addition, the clamp can be removed to decrease the minimum cut length, and stored within the machine. The Cut-True 29H also features an internal light to illuminate the cutting area

Features
    • Accurately cuts through paper stacks up to 3.15" high and 20.5" wide
    • Hardened steel bladed designed for accurate cuts and long life
    • Hydraulically-controlled paper clamp pressure and blade carrier
    • False clamp minimizes marking of sensitive paper stock, easily stores within the machine when not in use
    • Touchscreen control panel to easily set, adjust and program jobs
    • LED cutting line for precise adjustments prior to cutting
    • Solid steel blade carrier
    • Fine-tuning knob allows users to precisely adjust the back gauge position
    • Hydraulic pressure gauge display shows pressure and allows for easy adjustment
    • Low-friction work table makes it easy for operators to move and position large paper stacks
    • Internal light illuminates the cutting area
    • Program up to 100 jobs, each with 100 steps
    • Automatic blade return from any position
    • Foot pedal pre-clamp holds paper stack in position to check alignment prior to cutting
    • Infrared safety curtain shuts down operation if the plane is interrupted
    • Two-hand operation keeps hands out of the cutting area
    • Easy blade change from front of cutter
    • Wooden paper push tool to quickly and safely align the paper stack
    • Main switch and safety key lock keeps cutter secure from unauthorized operators
    • Transparent rear safety guard
    • Options & Supplies:
